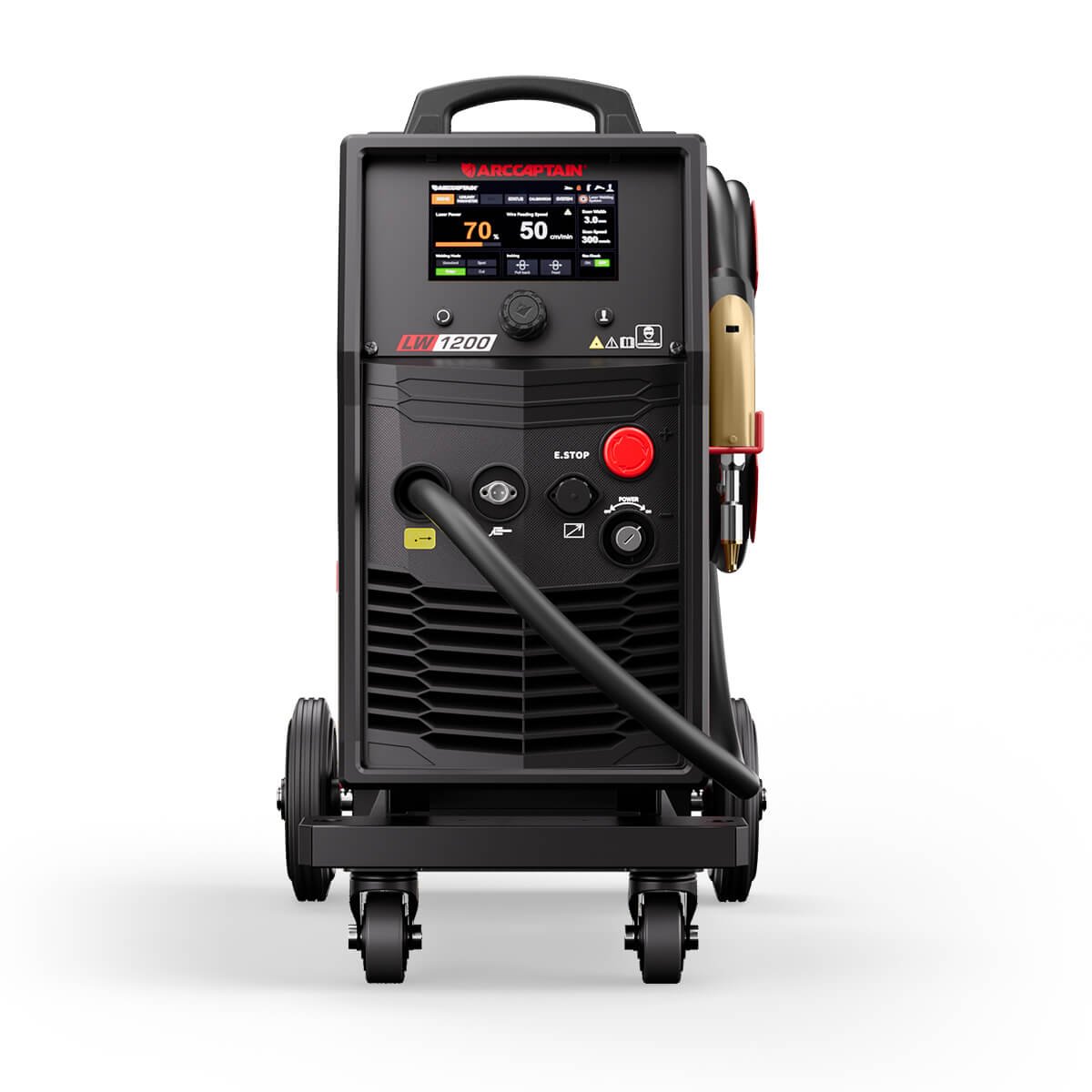

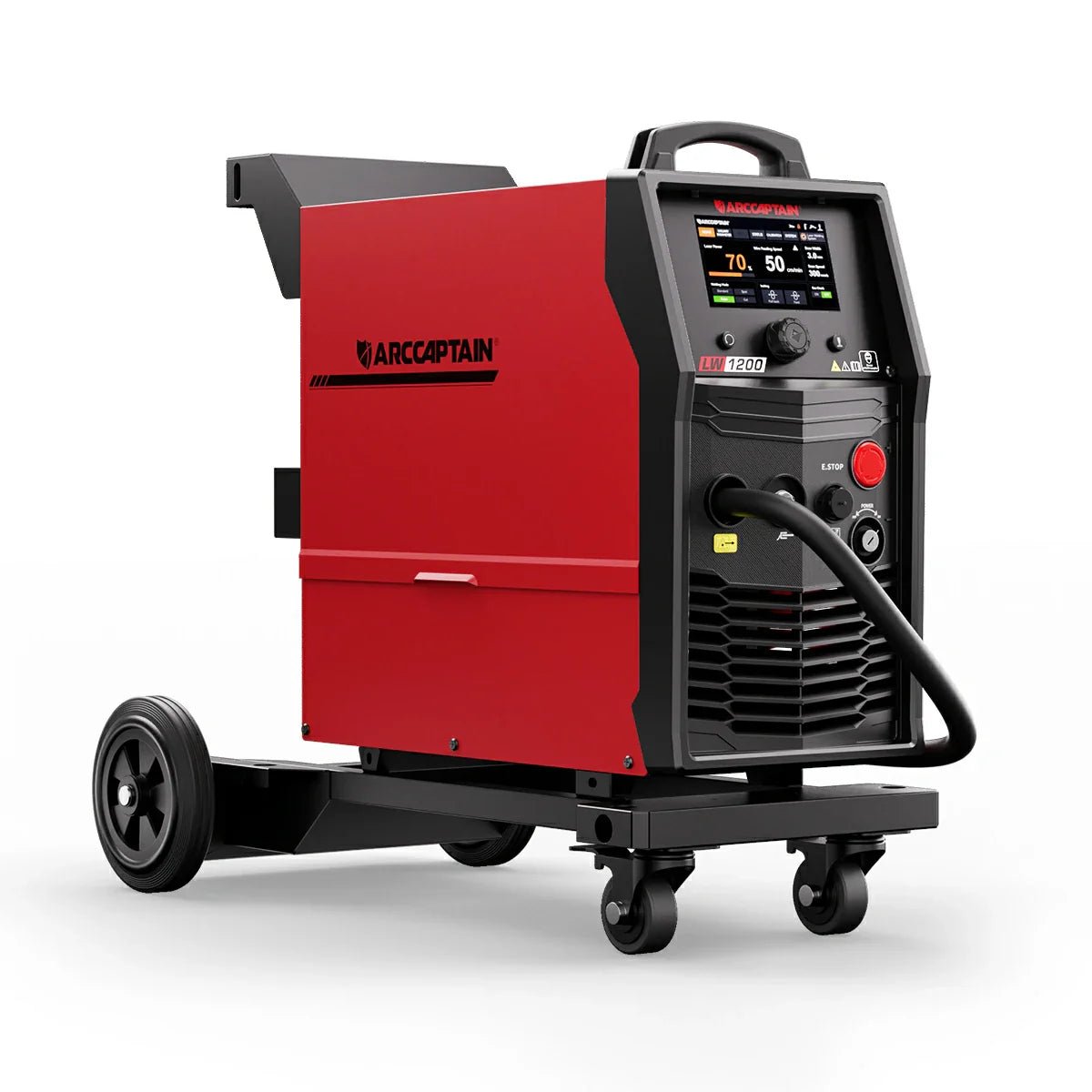

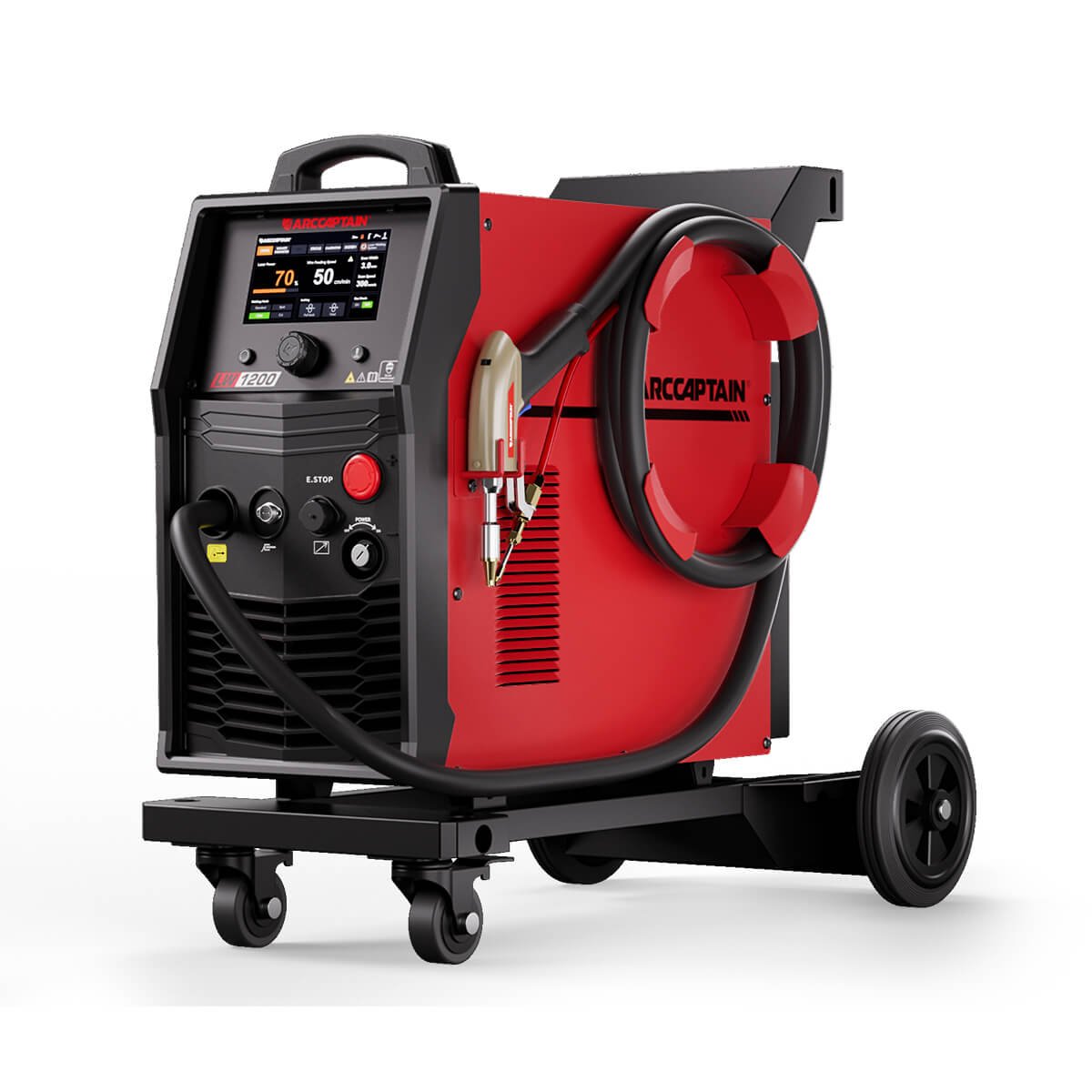

Arccaptain LW1200 1200W Laser Welder

Original price was: $10,999.00.Current price is: $7,299.00.

14 sold in last 16 hours
Hurry! Over 14 people have this in their carts
  •  Delivery & Return

    Free shipping : (10-21 business days)

    Express Flat rate : ( 5-11 Days): $180.00

    You have 30 days from the date of receiving your item to initiate a return.

  •  Ask a Question
  Estimated Delivery: Thu, Aug 13 – Wed, Aug 19  (Excl Sat, Sun)
  ... people are viewing this right now
  Share
Guaranteed Safe Checkout

Description

Industrial Handheld Laser Welding Machine

1200W 3-in-1 Handheld Laser Welder LW1200

Weld, cut, and clean with one air-cooled workstation. No external chiller required. Simply plug in, set up, and start working in minutes.

1200W Fiber Laser Power
3-in-1 Weld / Cut / Clean
1000+ Preset Parameters
5-10X Faster Than TIG

1 Industrial Laser Welding

Industrial-Grade Welding Performance — SPOT, PULSE, and Continuous

The LW1200 delivers industrial laser welding in a handheld portable machine. Three dedicated modes cover every application — from precision spot repairs to high-speed production runs — on a wider range of metals than any conventional arc process.

Perfect Welds in All Positions and Metals.

Carbon Steel Stainless Steel Aluminum & Alloys Brass Galvanized Steel Magnesium Alloy Titanium Cast Iron
Flat (1G / 1F)
Horizontal table work

Vertical (2G / 2F)
Upright wall joints

Horizontal (3G / 3F)
Side-on plate and pipe

Overhead (4G / 4F)
Ceiling and underside

Weld Thickness Range
0.012″ — 0.16″
Ultra-low heat input helps reduce distortion on thin metals. Weld materials from 0.012″ to 0.16″ thick with cleaner results, less warping, and less rework.

1,000+ Built-in Parameters

1,000+ built-in welding parameters for fabrication, automotive repair, and industrial maintenance. Simply select the material and thickness to get started.

Reduce setup time, minimize trial-and-error adjustments, and achieve more consistent welding results.

Welding speed 5–10× faster than TIG

Complete more jobs in less time while reducing labor hours and post-weld cleanup.

Capability TIG Welding MIG Welding LW1200 Laser
Travel Speed Slow — 1–3 in/min Moderate — 6–15 in/min Up to 5–10× faster than TIG
Heat-Affected Zone Wide Moderate Minimal — ultra-narrow HAZ
Thin Sheet Distortion High risk Moderate risk Near zero
Post-Weld Cleanup Usually required Usually required Minimal to none
Setup Time per Job High — manual tuning Moderate Seconds — preset auto-load

Safety Protection. Emergency stop, grounding protection, safety interlocks, contact-activated laser output, and included laser safety glasses for safer operation.

2  3-in-1 Laser System

3-in-1 Laser Welder — Weld, Cut, and Clean

01
Laser Welding
SPOT, PULSE, and Continuous welding modes for carbon steel, stainless steel, aluminum, brass, and more. Weld materials from 0.012″ to 0.16″ thick up to 5–10× faster than TIG.

Weld

02
Precision Laser Cutting
Cut thin metal cleanly and accurately with less heat impact and less cleanup. Perfect for custom fabrication, repairs, and detailed metalworking projects.

Cut

03
Laser Surface Cleaning
Remove rust, paint, and oxide layers quickly without grinding wheels or chemical strippers. Minimize surface damage and increase cleaning efficiency.

Clean

3 Air-Cooled

Air-Cooled Mobile Workstation

This portable laser welding machine combines an integrated air-cooled design with plug-and-play convenience. No external chiller required.

Integrated Air Cooling
The cooling system is built directly into the all-in-one enclosure. No external water chiller unit. No hoses to connect or drain. No coolant level to check.

Heavy-Duty Caster Wheels
Easily move the workstation between workstations and job areas. No forklift required—just roll it where it’s needed and start welding.

Plug In and Start Welding
Standard 220V input. No custom wiring installation required in most shop environments. No chiller warmup sequence.

Complete Shop Flexibility
Move the portable laser welding machine wherever it’s needed. No reinstallation, no complicated setup, just plug in and get to work.

Technical Specifications

LW1200 Specifications

Laser Type
Fiber Laser
Rated Power
1200W
Welding Thickness Range
0.012″ – 0.16″  (0.3mm – 4mm)
Welding Modes
SPOT / PULSE / Continuous
Compatible Materials
Carbon Steel, Stainless Steel, Aluminum & Alloys, Brass, Galvanized Steel, Magnesium Alloy, Titanium, Cast Iron
Functions
Welding / Cutting / Cleaning (3-in-1)
Cooling System
Air-Cooled — no external water chiller required
Mobility
Integrated heavy-duty caster wheels
Built-in Parameters
1,000+ verified preset programs
Input Power
220V / 50–60Hz
Wire Feed System
Integrated
Oscillation Wobble Head
Adjustable width and frequency
Weld Positions
Flat / Vertical / Horizontal / Overhead (all positions)

3-in-1 industrial laser welder
Air-cooled. Preset-guided. Weld, cut, and clean from one station.
