ER4043 Aluminum TIG Welding Rod 5LB TIG Filler Rod
Original price was: $49.99.$35.99Current price is: $35.99.
6 sold in last 8 hours
Hurry! Over 18 people have this in their carts
Estimated Delivery: Wed, Aug 12 – Tue, Aug 18 (Excl Sat, Sun)
... people are viewing this right now
Description
Compatible Aluminum Alloys for ER4043
| Aluminum Alloy | Typical Applications | ER4043 Compatibility |
|---|---|---|
| 6061-T6 / 6061-T651 | Structural frames, extrusions, bike frames | Best Choice |
| 6063 | Architectural tubing, window frames | Best Choice |
| 3003 / 3004 | Sheet metal, tanks, cookware | Recommended |
| 5052 | Marine sheet, general fabrication | Works Well |
| Casting Alloys (355, 356, 214, 43) | Cast aluminum repair | Recommended |
| 5083 / 5086 / 5456 | Marine structural, high-magnesium alloys | Use ER5356 Instead |
ER4043 vs ER5356 — Which Aluminum Filler Rod Should You Choose?
| Feature | ER4043 — This Product | ER5356 |
|---|---|---|
| Best For | 6061, 6063, 3xxx series, aluminum castings | 5xxx series, marine, structural applications |
| Weld Pool Control | Smooth and fluid, easy to control | Slightly thicker weld pool |
| Hot Crack Resistance | Excellent for 6xxx alloys | Lower when welding 6xxx alloys |
| Weld Appearance | Bright, smooth, shiny finish | Slightly dull or frosty appearance |
| After Anodizing | Weld area may appear darker | Better color match with base metal |
| High-Temp Service (>150°F / 66°C) | Acceptable | Not recommended |
| Tensile Strength | ~186 MPa | ~241 MPa (Higher strength) |
ER4043 Aluminum TIG Filler Rod Specifications
| Specification | Details |
|---|---|
| AWS Classification | ER4043 · AWS A5.10 / ASME SFA A5.10 |
| Also Known As | AlSi5 · 4043 Aluminum Filler Rod |
| Silicon Content (Si) | 4.5 – 6.0% |

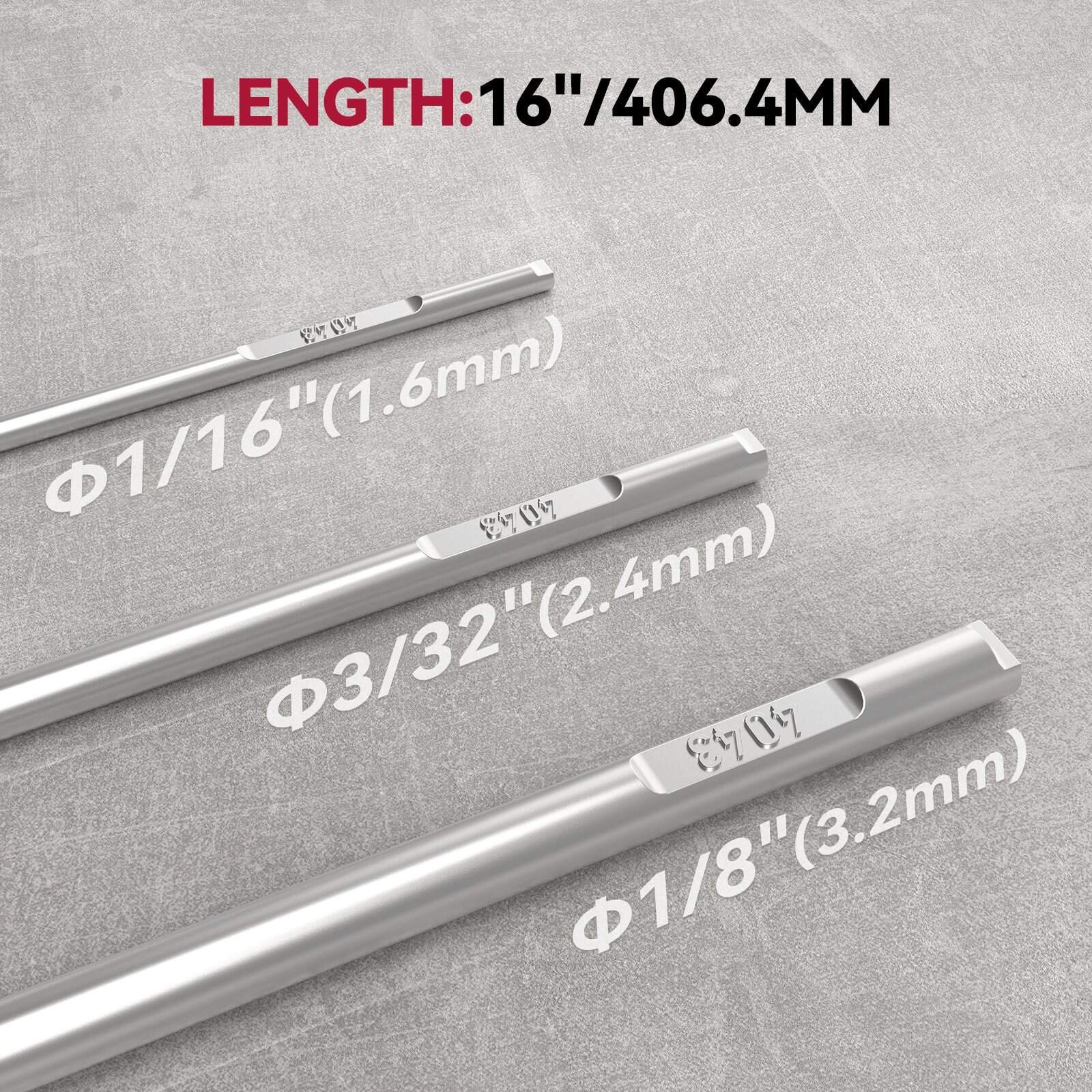

| Available Diameters | 1/16″ (1.6 mm) · 3/32″ (2.4 mm) · 1/8″ (3.2 mm) |
| Rod Length | 16 in (406 mm) |
| Package Weight | 5 lb |
| Shielding Gas | 100% Argon · Argon/Helium Mix |
| Welding Process | GTAW (TIG Welding) |

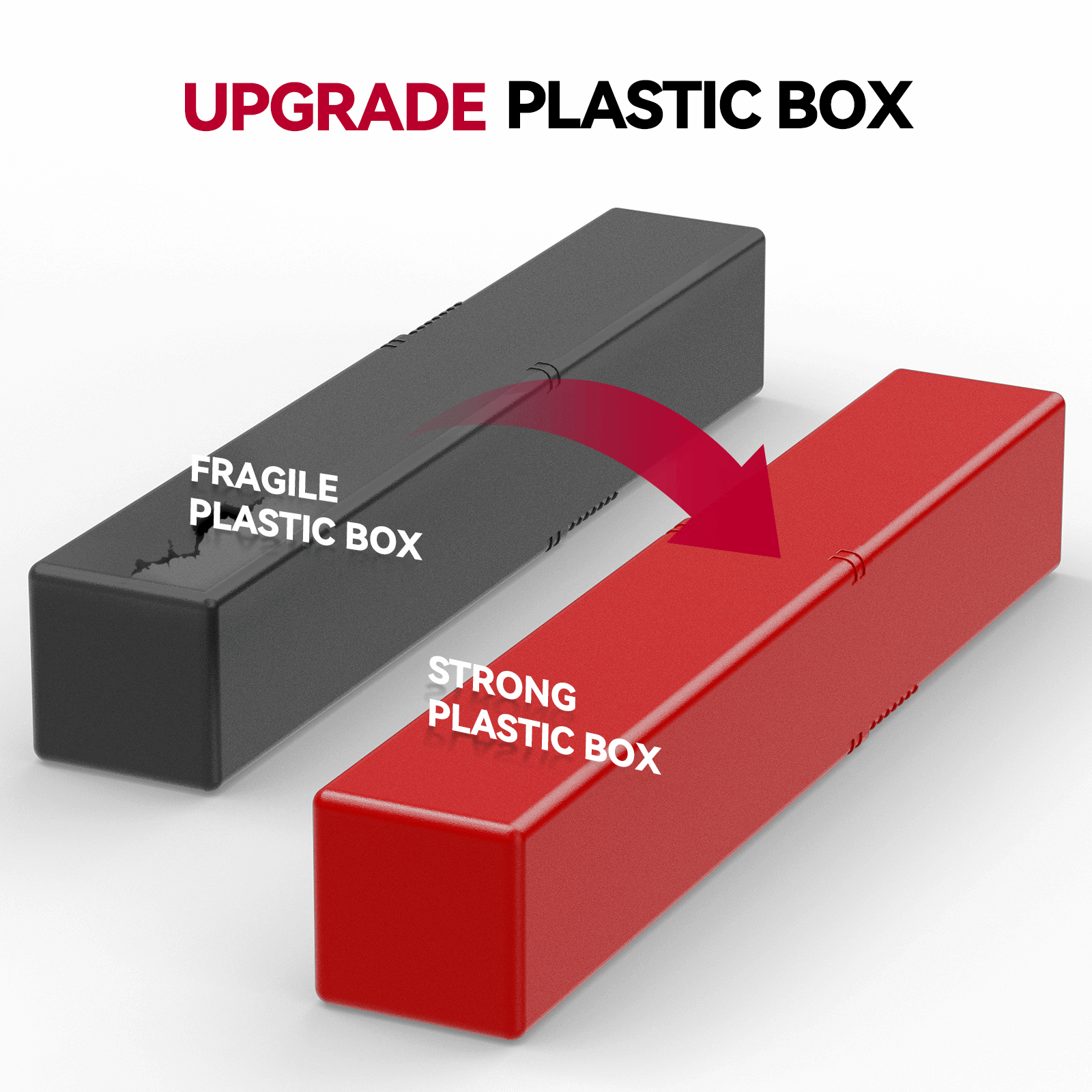

| Storage Recommendation | Store in sealed plastic tube and keep dry |
Additional information
| Size | 1/16"(1.6mm) x 16" 5LB, 3/32"(2.4mm) x 16" 5LB, 1/8"(3.2mm) x 16" 5LB |
|---|
